  • SF Flotation Cell
  • Introduction

    SF flotation cell is a mechanical agitation type flotation equipment with self-slurry suction and self-air suction

    Effective Volume

    0.37~20m3

    Product Improvement

    Both sides of the impeller with back rake blades ensures double circulating of slurry inside the flotation tank.

    Forward type tank, small dead end, fast foam movement

    Advantages

    Large air suction volume, low power consumption

    Long service life of wear parts

    Each tank with air suction, slurry suction and flotation function does not need any accessory equipment to form flotation circle, which is convenient for process flow changing

    The reasonable slurry circulation minimizes coarse sand sediments, and is conducive to flotation of coarse particle

    Auto-control device of slurry volume, convenient adjustment

    Impeller with backward style upper and lower leaf, the upper blade generates upper circulation; the lower blade generates lower circulation.

    Mechanical stirring, self- air suction, self-slurry suction

    SF flotation cell is composed flotation cell unit with JJF flotation cell as the suction tank of every operation

    Work Principle

    When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.

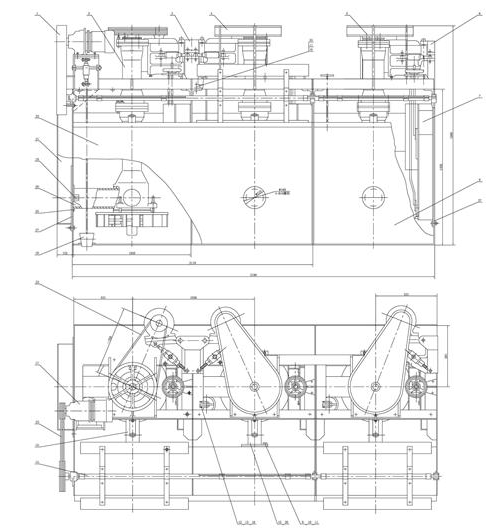

    Product Structure

    SF flotation cell adopts creative forward tank, double side blades of water wheels, draft tube and the false bottom device. The slurry in tank takes upper and lower circulation according to the fixed flow mode, which is conducive to suspension of coarse particle.

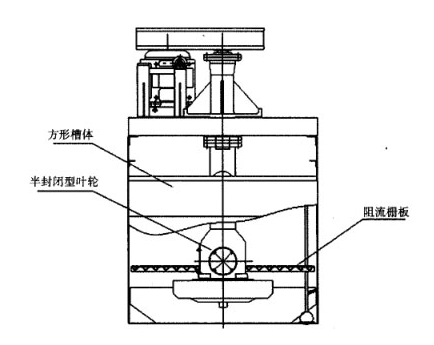

    Separation Drawing


    SF flotation cell is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to roughing and scavenging of large and middle scale flotation plants.



    Technical Parameters

    Model

    Effective
    Volume
    (m3)

    Capacity
    (m3/min)

    Impeller
    Diameter
    (mm)

    Impeller
    Revolution
    (r/min)

    Motor Power for Stir (kW)

    Motor Power for Scraper (kW)

    Single Tank Weight (kg)

    SF-0.37

    0.37

    0.2~0.4

    300

    352~442

    1.5

    0.55

    468

    SF-0.7

    0.7

    0.3~1.0

    350

    336~384

    3

    1.1

    629

    SF-1.2

    1.2

    0.6~1.6

    450

    312

    5.5

    1.1

    1373

    SF-2

    2

    1.5 ~3

    550

    280

    11

    1.5

    1879

    SF-2.8

    2.8

    1.5~3.5

    550

    280

    11

    1.5

    1902

    SF-4

    4

    2.0 ~4

    650

    235

    15

    1.5

    2582

    SF-6

    6

    3~6

    760

    191

    30

    2.2

    3540

    SF-8

    8

    4.0 ~8

    760

    191

    30

    2.2

    4129

    SF-16

    16

    5.0 ~16

    850

    169~193

    45

    1.5

    7415

    SF-20

    20

    10 ~12

    850

    169~193

    45

    1.5

    9828
