Product Introduction
BaoShan jaw crusher with high production capacity, large reduction ratio and high crushing efficiency
Production capacity
20～800t/h
Product Improvement
Baoshan improves the traditional specification of crushing chamber by adopting high speed swing jaw and cambered jaw plate.
Advantages
Advanced swing jaw assembly, more durable
Large reduction ratio, optimum design of chamber and high crushing efficiency
New cambered jaw increases the effective length of the jaw plate and brings lager capacity.

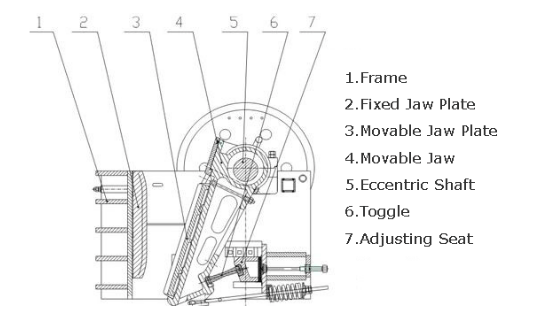

Work Principle
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw, and the stuff will be crushed in multiple ways. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of jaw crusher moves away from fixed jaw by the pulling force of rod and spring, the products after crushing will be discharged from the outlet of Jaw crusher.
Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy, highway and railway, water conservancy and so on.BaoShan as famous jaw crushers manufacturer will provide suitable jaw crusher price and machine selection for you.
Technical Parameters
|
Type |
Model |
Inlet Dimension (mm) |
Outlet |
Max. Feed Size (mm) |
Capacity |
Rotating Speed of Eccentric Wheel (r/min) |
Motor |
Overall Dimension (mm) |
Weight |
|
Ordinary |
PE100X150 |
100X150 |
5~20 |
80 |
0.5 ~2 |
300 |
2.2 |
525X535X605 |
230 |
|
PE150X250 |
150X250 |
10 ~40 |
125 |
2~6 |
300 |
5.5 |
875X745X935 |
1100 |
|
|
PE200X350 |
200X350 |
10 ~50 |
160 |
6~10 |
300 |
7.5 |
1080X1060X1088 |
1600 |
|
|
PE250X400 |
250X400 |
20 ~60 |
210 |
8~26 |
300 |
15 |
1108X1090X1392 |
2396 |
|
|
ZGPE250X400 |
8~16 |
1430X1316X1296 |
2800 |
||||||
|
PE250X500 |
250X500 |
20 ~80 |
210 |
13 ~45 |
300 |
18.5 |
1360X1450X1440 |
3100 |
|
|
ZGPE250X500 |
13 ~21 |
1425X1420X1417 |
3300 |
||||||
|
PE400X600 |
400 X600 |
40~100 |
350 |
25 ~64 |
275 |
30 |
1650X1748X1520 |
5800 |
|
|
ZGPE400X600 |
14 ~36 |
1716X1736X1653 |
6500 |
||||||
|
PE500X750 |
500X750 |
50120 |
400 |
30 ~80 |
275 |
45 |
1900X1876X1821 |
9000 |
|
|
ZGPE500X750 |
250 |
1980X2024X1920 |
12000 |
||||||
|
PE600X900 |
600 X900 |
75 ~200 |
480 |
56~192 |
250 |
75 |
2280X2245X2320 |
16700 |
|
|
ZGPE600X900 |
2280X2245X2320 |
14500 |
|||||||
|
ZGPE750X1060 |
750X1060 |
80~235 |
630 |
108~256 |
250 |
90 |
2450X2472X2795 |
28000 |
|
|
ZGPE900X1200 |
900X1200 |
95~265 |
750 |
186~398 |
200 |
110 |
3335X3182X3025 |
50000 |
|
|
ZGPE1100X1400 |
1100X1400 |
150~300 |
950 |
250~600 |
193 |
132 |
3900X3040X3875 |
70000 |
|
|
ZGPE1200X1500 |
1200X1500 |
160~320 |
1000 |
280~700 |
190 |
160 |
3800X3040X4150 |
82000 |
|
|
Fine |
PEX150X750 |
150X750 |
18 ~48 |
120 |
8~25 |
320 |
15 |
1210X1572X1045 |
2800 |
|
ZGPEX150X750 |
10 ~40 |
1240X1586X1025 |
3500 |
||||||
|
PEX200X1000 |
200 X1000 |
20~55 |
160 |
12 ~50 |
330 |
22 |
1860X1385X1200 |
5200 |
|
|
ZGPEX250X750 |
250X750 |
20 ~60 |
210 |
10 ~45 |
320 |
30 |
1751X1400X1515 |
4900 |
|
|
PEX250X1000 |
250X1000 |
20 ~50 |
210 |
15 ~50 |
330 |
30 |
1550X1990X1370 |
6500 |
|
|
ZGPEX250X1000 |
1650X1958X1460 |
6800 |
|||||||
|
ZGPEX250X1200 |
250X1200 |
20 ~60 |
210 |
20 ~60 |
320 |
45 |
1650X2170X1465 |
9000 |
|
|
ZGPEX300X1300 |
300X1300 |
25 ~65 |
250 |
20 ~80 |
330 |
55 |
1980X2456X1740 |
11500 |
