Descriptions
Hydraulic classifier has the advantage of simple structure, no momentum. easy to configure.

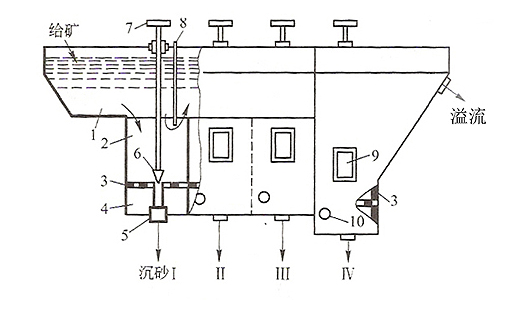

Hydraulic classifier is the use of sieve-plate subsidence caused by interference in the term of equipment. the body shape for the corner of the cone-shaped boxes, boxes with vertical partitions into 4-8 graded rooms. Each room has an area of 200mm*200mm. away from the room at the end of a certain height to set sieve.
According to the different processing capabilities, it can be made of four rooms, six rooms, 8 rooms of different specification.
The equipment used for sorting iron, tungsten, tin, gold, and non-ferrous, ferrous metal mine.
model |
Feed size (mm) |
Feed density
|
Increase in water pressure |
Sieve size (mm) |
Capacity t/h |
Overall dimension (mm) |
240*240 |
0-3 |
20%-26% |
150-200 |
240*240 |
5-8 |
1818*1138*1680 |
