Introduction
Classifying equipment takes use of the different sedimentation speed of the solid particle in slurry.
Capacity
10～1785 t/d
Product improvement
An automatic elevating apparatus is added to the discharge opening. The scoop in ball mill is eliminated bringing more stable operation.
The overflow spiral blade is higher than overflow level, and the overflow spiral center is lower than overflow surface. The high wire spiral classifier is applied in the classification of ore with particle size 0.83-0.15mm

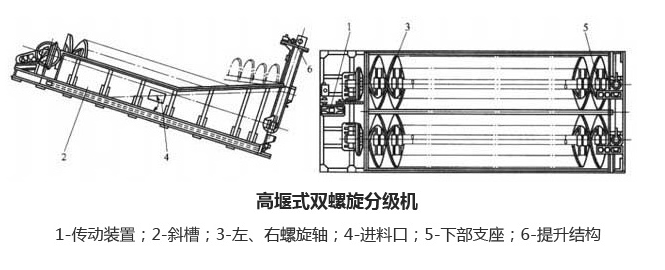

The grinded pulp is fed into tank from the inlet in the middle of settlement region, and the slurry classification sedimentation area is under the inclined tank. The spiral with low speed rotation stirs the slurry, so that the fine particles rise, and the coarse particles sinks to the bottom of tank. Overflow weir is above the bearing center which is under screw shaft, and is underneath overflow end.
High weir spiral classifier as the ancillary equipment of grinding to pre-classifying and check classifying is also applied in de-mudding and dewatering.
Please contact us if you want to choose the most suitable high weir spiral classifier, and our experts will give you advice
|
Type |
Model |
Rotating Speed of Spiral (r/min) |
Capacity of Sand Return (t/d) |
Capacity |
Spiral |
Spiral |
Slope |
Drive |
Drive |
Lifting |
Weight |
|
High Weir Single Spiral Classifier |
FLG-300 |
7.7 |
30 ~80 |
10-30 |
Φ300 |
3900 |
14 ~18 |
Y100L1-4 |
2.2 |
— |
668 |
|
FLG-500 |
8 |
145~260 |
21-32 |
Φ500 |
4390 |
Y112M-6 |
1600 |
||||
|
FLG-750 |
7.8 |
256~654 |
31-65 |
Φ750 |
5500 |
Y132S-6 |
3 |
2716 |
|||
|
FLG-1000 |
6.7 |
473~1026 |
85 |
Φ1000 |
6556 |
Y132M2-6 |
5.5 |
4000 |
|||
|
FLG-1200 |
5,6,7 |
1145~1600 |
150 |
Φ1200 |
6500 |
Y132M2-6 |
5.5 |
1.5 |
7943 |
||
|
FLG-1500 |
2.5,4,6 |
1140~2740 |
235 |
Φ1500 |
8265 |
Y160M-6 |
7.5 |
2.2 |
11827 |
||
|
FLG-2000 |
3.6,5.5 |
3890~5940 |
400 |
Φ2000 |
8700 |
Y160L-6/4 |
11; 15 |
3 |
20814 |
||
|
FLG-2400 |
3.6 |
6800 |
580 |
Φ2400 |
9130 |
Y200L2-6 |
22 |
4 |
24194 |
||
|
FLG-3000 |
3.2 |
11625 |
890 |
Φ3000 |
12500 |
Y200L-4 |
30 |
4 |
42188 |
||
|
High Weir Double Spirals Classifier |
2FLG-1200 |
5,6,7 |
2340~3200 |
310 |
Φ1200 |
6500 |
Y132M2-6 |
5.5X2 |
1.5X2 |
15840 |
|
|
2FLG-1500 |
2.5,4,6 |
2280~5480 |
470 |
Φ1500 |
8230 |
Y160M-6 |
7.5X2 |
2.2X2 |
22903 |
||
|
2FLG-2000 |
3.6,5.5 |
7780~11880 |
800 |
Φ2000 |
8400 |
Y160L-4 |
15X2 |
3.0X2 |
34621 |
||
|
2FLG-2400 |
3.63 |
13600 |
1160 |
Φ2400 |
9130 |
Y200L2-6 |
22X2 |
4X2 |
42460 |
||
|
2FLG-3000 |
3.2 |
23300 |
1785 |
Φ3000 |
12500 |
Y200L-4 |
30X2 |
4.0X2 |
73030 |
