Introduction
Agitation equipment which forces the slurry to take up and down circulation
Effective Volume
0.58～45m3
Product Improvement
Umbrella shaped impeller presses the slurry, so that the slurry takes up and down circulation along draft tube, which makes reagents and slurry mix well
Advanced structure of impeller, strong stirring ability
The impeller of BaoShan high efficiency agitation tank adopts umbrella shaped with large diameter and linear velocity to enhance the agitation and circulation capability.
The enhancement of circulation capability improves flotation index
The baffle can compress negative pressure to a limited space and improve suction capability. As a result, the circulation capacity is enhanced.

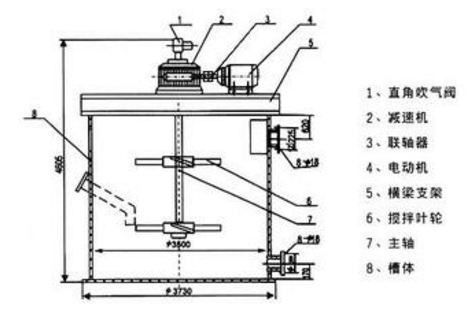

Product Structure
High efficiency agitation tank is mainly applied in slurry stirring before flotation, chemical and construction industry, cyanide chemical plant, sewage treatment plant, and coal plant etc.
（Better using according to the own situation and guidance of technician）
|
Model |
Effective Volume (m3) |
Rotating Speed of Impeller (r/min) |
Diameter of Impeller (mm) |
Motor Model |
Motor Power |
Weight |
|
GBJ-1000X1000 |
0.58 |
530 |
240 |
Y112M-6 |
2.2 |
548 |
|
GBJ-1250X1250 |
1.15 |
350 |
240 |
Y100L2-4 |
3 |
820 |
|
GBJ-1500X1500 |
2.2 |
320 |
420 |
Y132M2-6 |
5.5 |
1350 |
|
GBJ-2000X2000 |
5.46 |
240 |
560 |
Y160M-6 |
7.5 |
3173 |
|
GBJ-2500X2500 |
11.2 |
232 |
560 |
Y180L-6 |
15 |
3939 |
|
GBJ-3000X3000 |
19.1 |
220 |
700 |
Y225S-8 |
18.5 |
6676 |
|
GBJ-3500X3500 |
31 |
248 |
700 |
Y225M-8 |
22 |
7581 |
|
GBJ-4000X4000 |
45 |
153 |
1000 |
Y250M-8 |
37 |
9560 |
