Introduction

A wet permanent magnetic separator for separating strong magnetic minerals

Capacity

8-240t/h

Product Improvement

Magnetic system materials adopt ferrite and NdFeB with high performance, high coercive force and high remanence; the surface of the cylinder is lined with Baoshan wear-resistant rubber.

Advantages

Magnetic system is compounded of ferrite and permanent magnets; the average magnetic induction intensity of cylinder surface is 100～600mT

The same cylinder can be equipped with three types of tank adapting to different dressing process.

Small area taken, good separation for magnetic mineral, reduce the load of next process

Product Introduction

Permanent magnetic drum separators have 3 kinds including downstream type, counter flow type and semi- counter flow type according to the difference of base structure.

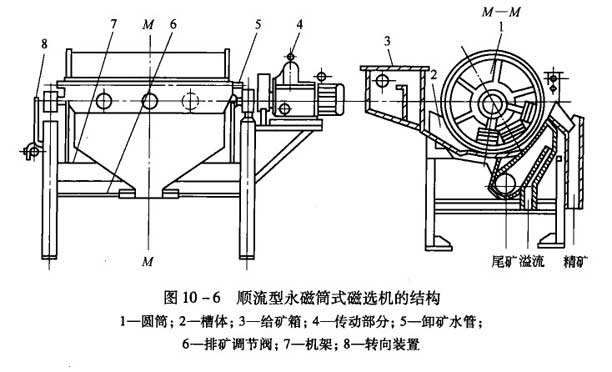

Downstream type permanent magnetic drum separator: slurry flows in the same direction with drum

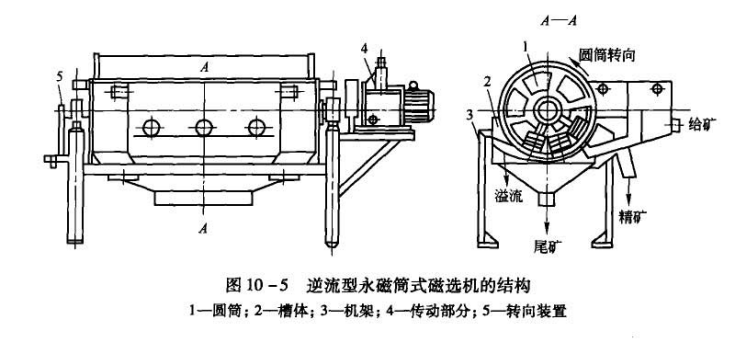

Counter flow type permanent magnetic drum separator: slurry flows over against drum, which create great conditions for cleaning of non magnetic ores. The non magnetic ores approach the clean surface of drum and the magnetic ores can be absorbed in the strongest magnetic field.

semi-counter flow type permanent magnetic drum separator: slurry is fed into cavity from the bottom of drum, and the magnetic ores fall into concentrate tank after reaching a certain height, while the non magnetic ores will enter into tailings tank along with slurry in the opposite direction with drum.

Product Application

This machine is widely used in mineral processing, coal washing and chemical industries for strong magnetic minerals that wet classification size ranges from 0 to 6 mm, and divides the minerals into magnetic and non-magnetic materials. It often processes strongly magnetic materials such as magnetite, magnetic pyrite etc..
