Product Description:
Log washer is mainly used to wash the manganese ore, iron ore, phosphate and other minerals, it is usually used to clean and separate the silt and stains from manganese ore, iron ore and other low-grade mineral. Also it suitable for scrubbing material which contains tough insoluble clays, conglomerates or soft stone.
This machine drive the spiral stirring shaft depends on speed reducer and rotate in different directions, and the minerals which enter the tank were washed by water and stir strongly by blade. The sewage was overflowed at the end of tank, the cleaned minerals were lifted up along the blade and discharged at the beginning of tank.
Advantages
1 .Durable washing and conveying paddles
2 .Fabricated with heavy duty shafts
3 .Oversize bearings and gears

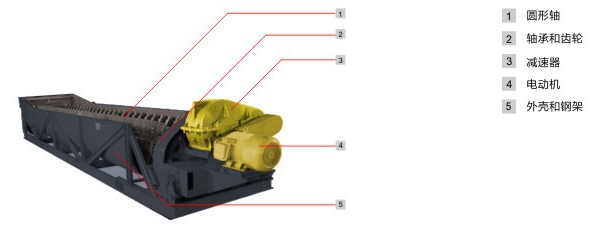

Product Structure
|
Model |
Spiral Dia. (mm) |
Rotating Speed (r/min) |
Feeding size (mm) |
Tank slope (o) |
Output (t/h) |
Power (kw) |
Weight (t) |
|
2RXL320 |
Φ320×3200 |
28 |
≤30 |
≤12 |
10 |
4 |
0.9 |
|
2RXL400 |
Φ400×4600 |
23 |
≤30 |
≤12 |
20 |
5.5 |
1.9 |
|
2RXL540 |
Φ540×4600 |
23 |
≤30 |
≤12 |
25 |
7.5 |
3.9 |
|
2RXL750 |
Φ750×7600 |
22.7 |
≤70 |
≤12 |
50 |
11 |
7.5 |
|
2RXL800 |
Φ800×7600 |
22 |
≤70 |
≤12 |
70 |
15 |
9.5 |
|
2RXL914 |
Φ914×7600 |
21 |
≤70 |
≤12 |
100 |
22 |
12.9 |
