Feeding Capacity:1-80t/h
Fluidization Water Required:1-25t/h
Gold centrifugal concentrator is known as centrifuge or centrifugal chute. Strong centrifugal force produced by high speed spin strengthens the process of gravity separation and effectively recover the ultrafine ore particles. Nowadays, centrifugal concentrator is widely used for the recovery of gold, tungsten, lead, manganese, iron, etc.
Gold Centrifuge Concentrator is a new type of gravity concentration equipment for concentrating gold and other high density minerals. Gold Centrifuge Concentrator is kind centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.

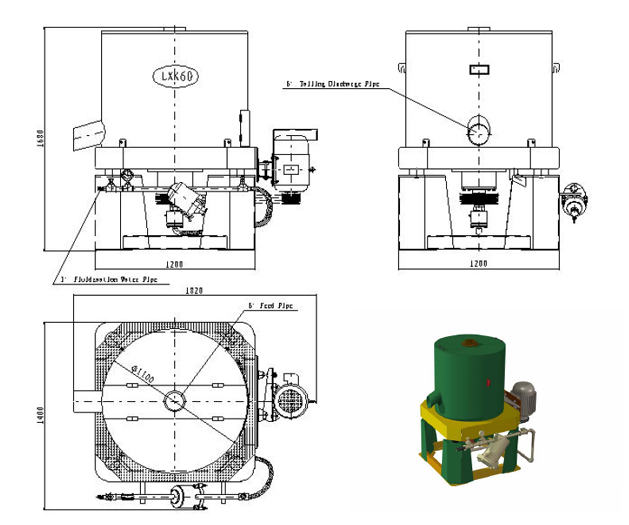

The main component parts of Centrifugal gold concentrator is consisted with Concentrating Cone, Slurry Feeding Pipe, Secure Concentrate Plug, Tailing Discharge Pipe, Concentrate Discharge Pipe, Fluidization Water Valve and Water Inlet.
1. Very effective for the process of ultrafine ore slime, The recovery rate of 37-39 micron is over 90%.
2. Under the action of centrifugal force, the process of gravity separation is strengthened and the separation time is much shortened. Therefore, the capacity of centrifugal concentrator is much bigger.
3. Small land coverage and high automation.
|
Model |
STLB20 |
STLB30 |
STLB60 |
STLB80 |
STLB100 |
|
|
Feeding Capacity |
T/H |
1-2 |
2-3 |
10-20 |
30-40 |
50-80 |
|
Pressure water |
Mpa |
0.05-0.1 |
0.1-0.2 |
0.1-0.2 |
0.1-0.2 |
0.1-0.3 |
|
Feeding Density |
% |
10-50 |
10-50 |
10-50 |
10-50 |
10-50 |
|
Feeding Size |
mm |
0-4 |
0-4 |
0-5 |
0-6 |
0-6 |
|
Bowl Cone Rotation Speed |
r/min |
800 |
600 |
480 |
400 |
360 |
|
Concentrate Weight |
Kg |
2-3 |
10-20 |
25-40 |
45-60 |
70-80 |
|
Motor Power Requirements |
KW |
0.75 |
1.5 |
4 |
11 |
18.5 |
|
Approximate Weight |
Kg |
160 |
600 |
1400 |
2200 |
3700 |
|
Approximate Dimensions |
mm |
940×700×1000 |
1200×1250×1250 |
1850×1550×1600 |
2000×1800×1900 |
2300×2000×2300 |
