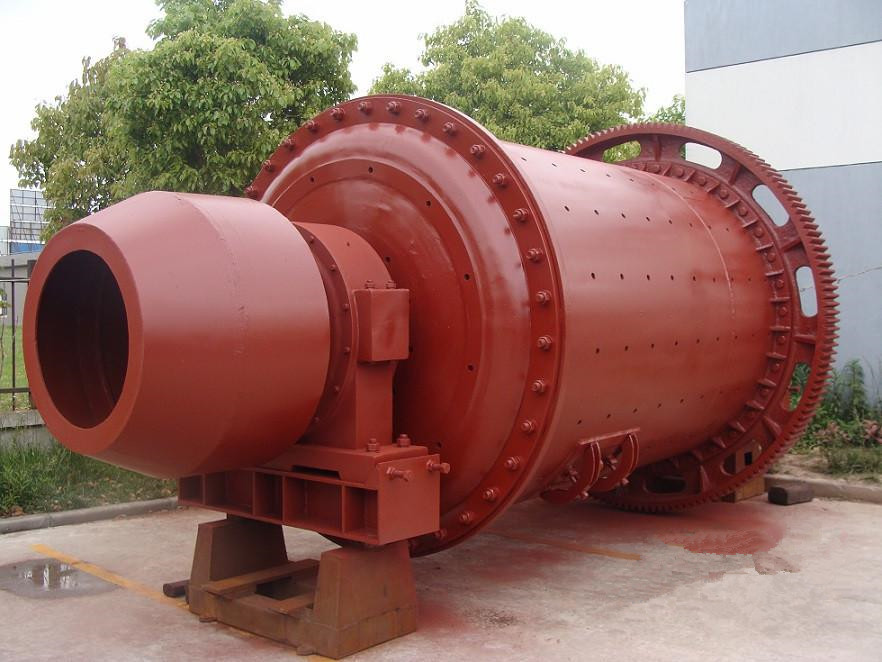

Cylinder Energy-Saving Overflow Ball Mill

Product Introduction

A overflow ball mill with rolling bearings, high efficiency and energy saving

Capacity

Up to 160t/h

Product Improvement

20-30%。Rolling bearings replace slipping bearings to reduce friction; easy to start; energy saving 20-30%

Advantages

The transmission machinery of Energy-saving overflow ball mill substitutes large-scale double row self-aligning roller bearing for sliding bearing, so it is easy to start and saves energy by 20-30%.

Energy-saving overflow ball mill adopts groove-type circular lining plate that is instrumental in increasing contact areas of iron balls and ores, which enhances grinding action and ore lifting capacity and decreases energy consumption.

Energy-saving overflow ball mill is configured with bigger discharge opening and has huge processing capacity.

Energy-saving overflow ball mill adopts whole milling house, which makes construction and installation easy.

Energy-saving overflow ball mill is equipped with oil-mist lubrication device which guarantees smooth operation of gears.

Technical Parameters

Model	Cylinder Diameter (mm)	Cylinder Length (mm)	Motor Power (kW)	Length (mm)	Width (mm)	Height (mm)	Capacity (t/h)	Effective Volume (m3)	Max. Ball Load (t)	Weight (kg)
MQYg 0912	900	1200	15	3666	1835	1400	0.25〜1.2	0.7	1	4265
MQYg 0918	900	1800	22	4401	2535	2070	0.25〜1.6	0.9	1.66	5235
MQYg 1212	1200	1200	18.5	3512	2076	1620	0.17 〜4.1	1.14	1.9	9610
MQYg 1224	1200	2400	45	5745	2352	1778	0.26〜6.15	2.4	4.6	12219
MQYg 1240	1200	4000	80	7990	2412	1728	0.34 〜8.3	3.7	8	15940
MQYg 1515	1500	1500	45	5740	3075	2280	1.4 〜4.5	2.2	4.2	17125
MQYg 1530	1500	3000	80	7253	3070	2280	2.8 〜9	5	10	21129
MQYg 1536	1500	3600	110	8595	3185	2280	2.8 〜10	5.4	10	23933
MQYg 1545	1500	4500	130	9680	3254	2370	3.5〜12.5	7	12	27500
MQYg 1557	1500	5700	130	10880	3254	2370	4.5 〜16	8.9	15	29359
MQYg 1836	1800	3620	180	8865	3683	2785	4.5 〜29	8.2	13.8	34970
MQYg 1845	1800	4520	210	9750	3683	2785	5〜33	10.2	19	37480
MQYg 1857	1830	5720	210	11009	3683	2785	6〜40	12.5	22	42096
MQYg 1863	1800	6320	320	11690	3781	2775	6〜45	14.2	25	45520.5
MQYg 1870	1800	7020	245	12599	3783	2735	7〜47	15	31.5	45136
MQYg 1875	1800	7520	245	12850	3783	2775	7.5 〜54	17	30	49450
MQYg 2122	2100	2200	155	7235	4120	3083	5〜29	6.6	20	35963
MQYg 2130	2100	3000	180	8220	4220	3083	6.5 〜36	9	27	40157
MQYg 2136	2100	3600	210	8958	4320	3025	7.5 〜42	10.8	23.5	44132.5
MQYg 2145	2100	4500	245	10350	4268	3121	10 〜45	13.5	23.6	42772
MQYg 2430	2400	3000	280	9023.5	4836.4	3490	7.2 〜92	11.5	22.5	57455.5
MQYg 2436	2400	3600	280	9623.5	4836.4	3490	8 〜110	13.8	25.5	60861.5
MQYg 2442	2400	4200	320	10204.5	4836.4	3440	8 〜130	16.5	31.5	63829.5
MQYg 2445	2400	4500	380	11132.5	5091.4	4065	8.5 〜140	17.5	31	75923
MQYg 2460	2400	6000	450	12623.5	5201.4	4060	9 〜180	23	40	83869
MQYg 2727	2700	2700	280	8901	4786.4	3620	7 〜110	13.8	29	66201
MQYg 2730	2700	3000	280	9201	4786.4	3620	8 〜115	15.3	32	72415
MQYg 2732	2700	3200	320	10729	5000	3620	8〜120	15.7	32	83110
MQYg 2736	2700	3600	380	10764	5150	3620	12〜145	17.7	37	90441
MQYg 2740	2700	4000	380	10870	5050	3620	12.5 〜152	19	40	93537
MQYg 2745	2700	4500	380	11664	5150	3620	12.5 〜163	20.5	40	96196
MQYg 2747	2700	4700	450	11864	5150	3620	13〜170	23	45	97605
MQYg 3231	3200	3100	630	12550	6750	5150	14〜180	21.4	45	112430
MQYg 3245	3200	4500	630	13950	7200	5152.5	95〜110	32.8	65	141629
MQYg 3660	3600	6000	1250	19780	7700	5496	120〜200	55	102	193483
