Introduction

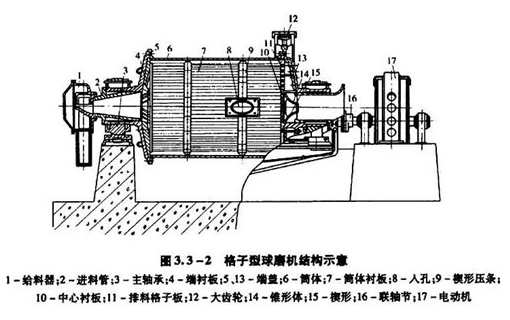

A traditional ball mill with discharging grid
Diameter of cylinder
900mm～4500mm
Products improvement
Wet type grid ball mill is lined with Baoshan wear-resistant rubber sheet with excellent wear resistance, long service life and convenient maintenance
Advantages
Jack-up device, easy maintenance
The hydrostatic and hydrodynamic bearings ensure the smooth operation
Low speed transmission is easy for starting and maintenance
The oil-mist lubrication device guarantees reliable performance of bearings
The gas clutch adopts the flexible start-up model
Wet type grid ball millproduced by BaoShan Company is applied in mineral dressing, chemical industry, cement and construction industry. More related information of grid ball mill, please contact with ShiCheng BaoShan
|
Model |
Cylinder |
Cylinder |
Motor |
Length |
Width |
Height |
Effective |
Max. Ball Load (t) |
Weight |
|
MQG0909 |
900 |
900 |
18.5 |
4750 |
2213 |
2050 |
0.45 |
0.96 |
4620 |
|
MQG0918 |
900 |
1800 |
22 |
5000 |
2280 |
2050 |
0.9 |
1.92 |
5340 |
|
MQG1212 |
1200 |
1200 |
22 |
5788 |
2994 |
2540 |
1.14 |
2.4 |
11438 |
|
MQG1224 |
1200 |
2400 |
55 |
6673 |
2994 |
2540 |
2.28 |
3.96 |
13200 |
|
MQG1515 |
1500 |
1500 |
60 |
6094 |
3300 |
2766 |
2.5 |
5 |
13700 |
|
MQG1530 |
1500 |
3000 |
95 |
7979 |
3300 |
2766 |
5 |
10 |
18690 |
|
MQG2122 |
2100 |
2200 |
155 |
7750 |
4839 |
3794 |
6.6 |
15 |
45400 |
|
MQG2130 |
2100 |
3000 |
210 |
8744 |
4394.7 |
3110 |
9 |
20 |
45790 |
|
MQG2430 |
2400 |
3000 |
280 |
9728 |
4956 |
4018 |
12.1 |
22.5 |
67000 |
|
MQG2721 |
2700 |
2100 |
280 |
9300 |
5500 |
4500 |
10.7 |
24 |
63000 |
|
MQG2727 |
2700 |
2700 |
310 |
9900 |
5500 |
4500 |
13.8 |
29 |
68530 |
|
MQG2736 |
2700 |
3600 |
400 |
9765 |
5826.6 |
4674.5 |
18.4 |
41 |
98020 |
|
MQG3231 |
3200 |
3100 |
630 |
12750 |
6750 |
5152.5 |
22.5 |
45 |
115103 |
|
MQG3236 |
3200 |
3600 |
630 |
14300 |
6760 |
5200 |
24.8 |
58 |
119012 |
|
MQG3245 |
3200 |
4500 |
800 |
13896 |
7200 |
5152.5 |
32.8 |
65 |
137589 |
|
MQG3639 |
3600 |
3900 |
1000 |
15000 |
7200 |
6300 |
36.2 |
75 |
145000 |
|
MQG3645 |
3600 |
4500 |
1250 |
15200 |
7750 |
6300 |
41.8 |
90 |
159700 |
|
MQG3650 |
3600 |
5000 |
1400 |
17600 |
7750 |
6300 |
46.4 |
96 |
158000 |
|
MQG3660 |
3600 |
6000 |
1600 |
17000 |
8800 |
6500 |
55.7 |
120 |
189000 |
|
MQG4060 |
4000 |
6000 |
1700 |
17400 |
9500 |
7600 |
69.8 |
137 |
214000 |
|
MQG4560 |
4500 |
6000 |
2300 |
17800 |
10500 |
7600 |
87 |
158 |
294000 |
