Product Introduction
A traditional and widely using vibrating screen
Capacity
20～300t/h
Product Improvements
Elastic location limit part is made of Baoshan wear-resistant rubber
Adopting the new patent technology: a seat type vibrating screen lifting device.
Advantages
Large amplitude, high screening efficiency
BaoShan wear-resistant screen mesh, the service life is 3-10 times longer than steel’s, and 2 times than PU’s
Long service life, low noise and convenient maintenance
The two types of vibrating screen, seat type and hanging type

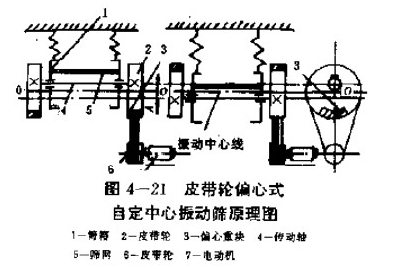

Auto centering vibrating screen is driven by the vibrator with eccentric device
The characteristics of the vibrating screen as follow:
The materials on screen achieve loosing and stratification
The counterweight of vibrating screen can be adjusted, and the screen amplitude can be adjusted according to the production requirement
The feeding changes, the amplitude changes. Small feeding brings severe amplitude and vibration; much feeding brings smaller amplitude. Change of feeding will affect the "dynamic balance", and the belt pulley center had some vibration;
It is suitable for screening medium and fine particle rather than coarse materials.
Application
The application range of auto centering vibrating screen: mines, coal, metallurgy, construction materials, chemistry industry
|
Model |
Spec. |
Max. Feed Size (mm) |
Capacity |
Motor Model |
Motor Power |
Weight |
Remarks |
|
SZZ0918 |
900 X1800 |
40 |
20 ~25 |
Y100L1-4 |
2.2 |
420 |
Hanged |
|
SZZ0918 |
10 ~30 |
553 |
Pedestal |
||||
|
2SZZ0918 |
20 ~40 |
570 |
Pedestal |
||||
|
SZZ1225 |
1250X2500 |
100 |
100 |
Y132S-4 |
5.5 |
1017 |
Hanged |
|
SZZ1225 |
100 |
1466 |
Pedestal |
||||
|
2SZZ1225 |
100~150 |
1320 |
Hanged |
||||
|
2SZZ1225 |
100~150 |
1870 |
Pedestal |
||||
|
SZZ1530 |
1500X3000 |
90~200 |
Y132M-4 |
7.5 |
1850 |
Hanged |
|
|
SZZ1530 |
2665 |
Pedestal |
|||||
|
2SZZ1530 |
2963 |
Hanged |
|||||
|
SZZ1540 |
1500X4000 |
100 |
90~200 |
Y160L-4 |
15 |
2865 |
Pedestal |
|
2SZZ1540 |
1500X4000 |
400 |
90~200 |
Y160L-4 |
15 |
3412 |
Pedestal |
|
SZZ1836 |
1800X3600 |
150 |
100~300 |
Y160M-4 |
11 |
4500 |
Hanged |
|
2SZZ1836 |
Y180M-4 |
18.5 |
5616 |
Pedestal |
