Product introduction
A vibrating screen that screen box takes reciprocating movement along the directional linear, is used for fine screening.
Capacity
20～300t/h
Product improvement
Screen angle is adjustable
Vibrating motor as vibration exciter, low energy consumption
Advantages
Small motor power, only 1/4-1/5 of other screen
High screen efficiency
Adjustable screen angle
Transferring the small load to base do not need special treatment
Screen mesh is made of wear-resistant rubber with long service life

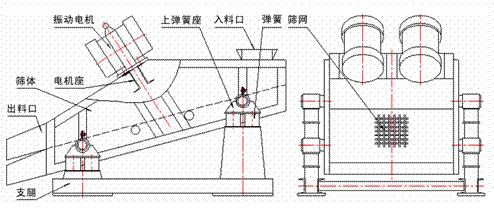

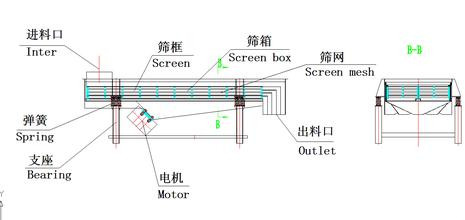

Working principle
When linear vibrating screen works, the two motor reversely placed synchronously generate reverse force, which forces the screen body do the vertical motion. The materials on vibrating screen under the exciting force are periodically thrown forward to finish screening.
Linear vibrating screen is applied in dewatering, de-mud, de-liquid and de-heavy medium
|
Model |
Screening Area (m2) |
Amplitude (mm) |
Motor Model |
Motor Power (kW) |
Rotating Speed (r/min) |
|
DZS0412 |
0.4X1.2 |
2~4 |
YZS-3-6 |
0.25 |
970 |
|
DZS0415 |
0.4X1.5 |
||||
|
DZS0612 |
0.6X1.2 |
||||
|
DZS0718 |
0.7X1.8 |
YZO-10-6 |
0.75 |
960 |
|
|
DZS0816 |
0.8X1.6 |
||||
|
DZS0912 |
0.9X1.2 |
||||
|
DZS0918 |
0.9 X 1.8 |
YZU-10-6 |
0.75 |
||
|
DZS1018 |
1.0X1.8 |
4~6 |
YZU-16-6 |
1.1 |
950 |
|
DZS1020 |
1.0X2.0 |
3~5 |
YZO-20-6 |
2 |
|
|
DZS1225 |
1.25X2.5 |
YZU-16-6 |
1.1 |
||
|
DZS1530 |
1.5X3.0 |
YZU-20-6B |
1.5 |
960 |
|
|
2DZS1530 |
1.5X3.0 |
YZO-20-6 |
2 |
950 |
|
|
DZS1536 |
1.5X3.6 |
YZU-20-6B |
1.5 |
960 |
|
|
2DZS0918 |
0.9 X 1.8 |
4~6 |
YZU-25-6B |
1.5 |
960 |
|
2DZS1018 |
1.0 X 1.8 |
2~4 |
YZU-20-6B |
1.5 |
960 |
