Product Introduction

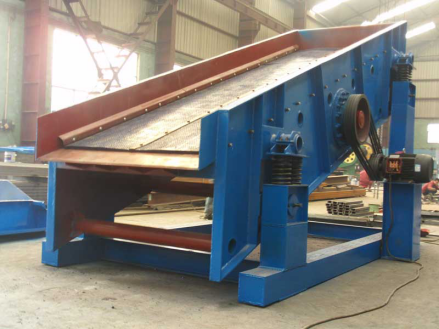

A kind of advanced vibrating screen with circular motion
Capacity
80～1700t/h
Product Improvement
Ring groove rivets connection, plate type screen box, advanced structure, strong and durable
Vibration exciter with eccentric shaft and eccentric block, high screening efficiency, large capacity
Screen mesh is made of wear-resistant rubber with long service life
Screen frame with high strength
Large clearance bearings operating with low temperature lift
Reasonable mechanical structure, low noise and high screening efficiency
Ring groove rivets connection, advanced structure, strong and durable
Large capacity, strong versatility of components and convenient repair
Classification of screen mesh
Screen mesh is main wearing parts. According to the materials and requirement of clients, there are manganese steel weaving meshes, punching screens and rubber screen plates with single or double layers.
According to the loading, wear-resistant screen mesh of BaoShan round vibrating screen is divided into light screen mesh (HD60 rubber), medium screen mesh (HD 70 rubber), heavy screen mesh (HDS rubber)
Round vibrating screen is applied in quarry for screening sandstone or for product classification of coal, mine, construction materials, electric power and chemical industry.
|
Model |
Screen Surface |
Max. Feed Size |
Capacity (t/h) |
Power (kW) |
Weight (kg) |
||
|
Area (m2) |
Dip Angle (° ) |
Mesh Size (mm) |
(mm) |
||||
|
YA1236 |
4.3 |
20 |
6~50 |
200 |
80~240 |
11 |
4905 |
|
2YA1236 |
80~240 |
5311 |
|||||
|
YA1530 |
4.5 |
80~240 |
4675 |
||||
|
YA1536 |
5.4 |
100~350 |
5137 |
||||
|
2YA1536 |
400 |
100~350 |
15 |
5624 |
|||
|
YAH1536 |
30~150 |
160~650 |
11 |
5621 |
|||
|
2YAH1536 |
30~150; 6~50 |
160~650 |
15 |
6045 |
|||
|
YA1542 |
6.5 |
6~50 |
200 |
110~385 |
11 |
5515 |
|
|
2YA1542 |
6~50 |
110~385 |
15 |
6098 |
|||
|
YA1548 |
7.2 |
6~50 |
120~420 |
5918 |
|||
|
2YA1548 |
6~50 |
120~420 |
6321 |
||||
|
YAH1548 |
7.2 |
30~150 |
400 |
200~780 |
6842 |
||
|
2YAH1548 |
7.2 |
30~150 ； 6~50 |
200~780 |
7404 |
|||
|
YA1836 |
6.5 |
30~150 |
200 |
140~220 |
11 |
5205 |
|
|
2YA1836 |
6.5 |
30~150 |
140~220 |
15 |
5946 |
||
|
YAH1836 |
6.5 |
30~150 |
400 |
220~910 |
11 |
5900 |
|
|
2YAH1836 |
6.5 |
30~150; 6~50 |
220~910 |
15 |
6353 |
||
|
YA1842 |
7.6 |
6~150 |
200 |
140~490 |
15 |
5829 |
|
|
2YA1842 |
7.6 |
6 ~150 |
140~490 |
15 |
6437 |
||
|
YAH1842 |
7.6 |
30~150 |
400 |
450~800 |
15 |
6352 |
|
|
2YAH1842 |
7.6 |
30~150 ； 6~50 |
450~800 |
15 |
7037 |
||
|
YA1848 |
8.6 |
20 |
6~50 |
200 |
150~525 |
15 |
6289 |
|
2YA1848 |
8.6 |
200 |
150~525 |
15 |
6624 |
||
|
YAH1848 |
8.6 |
30~150 |
400 |
250~1000 |
15 |
7122 |
|
|
2YAH1848 |
8.6 |
30~150 ； 6~50 |
400 |
250~1000 |
15 |
7740 |
|
|
YA2148 |
10 |
6~50 |
200 |
180~630 |
18.5 |
9033 |
|
|
2YA2148 |
10 |
6~50 |
200 |
180~630 |
22 |
10532 |
|
|
YAH2148 |
10 |
13~200 |
400 |
270~1200 |
18.5 |
10430 |
|
|
2YAH2148 |
10 |
30~150 ； 6~50 |
400 |
270~1200 |
22 |
11190 |
|
|
YA2160 |
12.6 |
6~80 |
200 |
230~800 |
18.5 |
9926 |
|
|
2YA2160 |
12.6 |
6~50 |
200 |
230~800 |
22 |
11249 |
|
|
YAH2160 |
12.6 |
30~150 |
400 |
350~1500 |
30 |
12490 |
|
|
2YAH2160 |
12.6 |
30~150 ； 6~50 |
400 |
350~1500 |
30 |
13858 |
|
|
YA2448 |
11.5 |
6~50 |
200 |
200~700 |
18.5 |
9834 |
|
|
YAH2448 |
11.5 |
6~50 |
400 |
310~1300 |
30 |
11830 |
|
|
2YAH2448 |
11.5 |
30~150； 6~50 |
400 |
310~1300 |
30 |
13012 |
|
|
YA2460 |
14.4 |
6~50 |
200 |
260~780 |
30 |
12240 |
|
|
2YA2460 |
14.4 |
6~50 |
200 |
260~780 |
30 |
13583 |
|
|
YAH2460 |
14.4 |
30~150 |
400 |
400~1700 |
30 |
13096 |
|
|
2YAH2460 |
14.4 |
30~150 ； 6~50 |
400 |
400~1700 |
30 |
14455 |
|
