Product Introduction

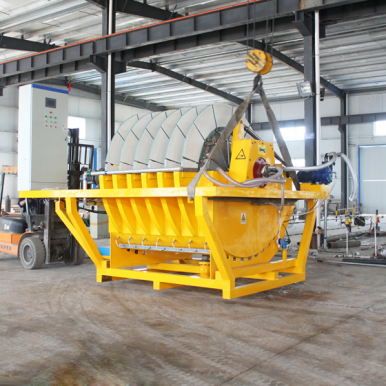

A vacuum filter with vertical discs consisted of fanning plates
Sedimentation Area
9～116m2
Product Improvement
Polypropylene plastic plate, light weight, corrosion resistance, stepless speed regulation, change spindle speed according to different needs
Large filtering area, large capacity
Full dehydration
Marked technical and economic effect
Small area taken, easy to manufacture and strong adsorption ability

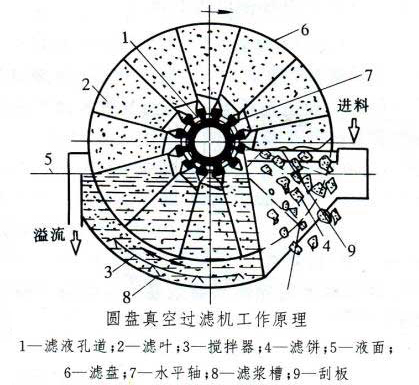

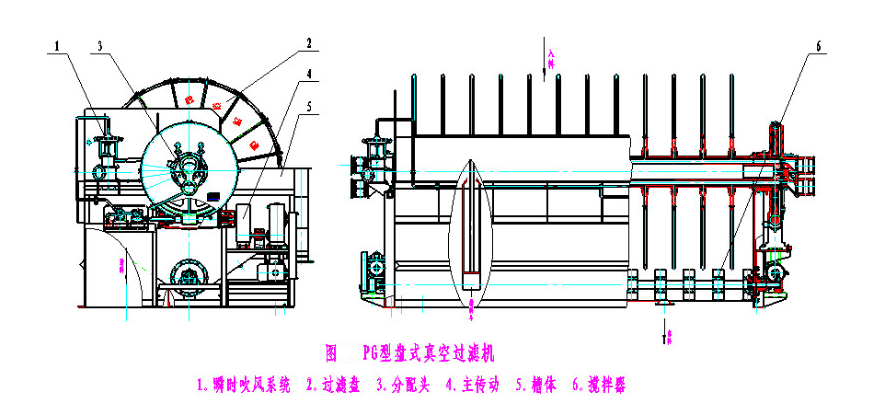

Filter plate immersed in the pulp while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate. Filter cake comes out from slime hopper receiving spray washing. Filter cake falls into the tank by the pressure from the wind and scraper.
It can be used for floating and dewatering in clean coal and fine materials like tailings, and it can be also used in metallurgy, chemical, petroleum, sewage treatment, and other aspects of the solid-liquid separation.
Technical Parameters
|
Model |
PG18-4 |
PG27-6 |
PG39-4 |
PG58-6 |
PG78-8 |
PG97-10 |
PG116-12 |
|
|
Filter Area (m2) |
18 |
27 |
39 |
58 |
78 |
97 |
116 |
|
|
Quantity of Filter Disc |
4 |
6 |
4 |
6 |
8 |
10 |
12 |
|
|
Diameter of Filter Disc (mm) |
1800 |
1800 |
2700 |
2700 |
2700 |
2700 |
2700 |
|
|
Rotating Speed of Filter Disc (r/min) |
1 |
0.135 ~0.607 |
0.135 ~0.607 |
0.135 ~0.607 |
0.15~0.67 |
0.15~0.67 |
0.148~0.66 |
0.148~0.66 |
|
2 |
0.254~1.14 |
0.254~1.14 |
0.254~1.14 |
0.254~1.14 |
0.254~1.14 |
0.285~1.285 |
0.285~1.285 |
|
|
3 |
|
|
|
|
|
0.44~1.98 |
0.44~1.98 |
|
|
Rotating Speed of Agitator (r/min) |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
|
|
Main Drive Motor |
Model |
YCTL132-4B |
YCTL132-4B |
YCT160-4A |
YCT160-4B |
YCT160-4B |
YCTL180-4A |
YCTL180-4A |
|
Power (kW) |
1.5 |
1.5 |
2.2 |
3 |
3 |
4 |
4 |
|
|
Rotating |
1230~125 |
1230~125 |
1250~125 |
1250~125 |
1250~125 |
1250~125 |
1250~125 |
|
|
Drive Motor of Agitator |
Model |
Y90L-4 |
Y90L-4 |
Y90L-4 |
Y100L1-4 |
Y100L1-4 |
Y112M-4 |
Y112M-4 |
|
Power (kW) |
1.1 |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
|
|
Rotating |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
|
|
Vacuum Pump |
Model |
SZ-4 |
2YK-27 |
SZ-4 |
SZ-4 |
SZ-4 |
2YK-110 |
2YK-110 |
|
Quantity |
1 |
1 |
1 |
2 |
2 |
1 |
1 |
|
|
Blower |
Model |
SZ-2 |
SZ-2 |
SZ-2 |
SZ-3 |
SZ-3 |
SZ-3 |
SZ-3 |
|
Quantity |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
|
Weight (kg) |
3500 |
4500 |
6000 |
8000 |
9000 |
10000 |
12000 |
|
|
Overall Dimensions: (LXWX H) (mm) |
2820X2355 |
3820X2355 |
3015X3275 |
3930X3355 |
4730X3355 |
5530X3355 |
6330X3355 |
|
