Introduction
Produced by introducing American technique
Capacity
5-1400t/d
Product improvement
New mechanical structure, strengthening the flocculation of solid particleand supplying flocculent adding system
Adding the flocculants to increased sedimentation particle size, thus speeding up the sedimentation velocity.
Adding the degassing tank to prevent solid particles attached to the bubbles
Setting material receiving plate and cylinder moving down, the feeding evenly and steadily falling, effectively prevent the occurrence of the splashing.
Unit processing capacity is improved by 4 ~ 9 times,and energy saving 30%.
High efficiency thickener is not simple equipment, but with a new type of dewatering equipment mud layer filtration characteristics. Its main feature is to add a certain amount in the flocculants to be concentrated pulp, the pulp of mineral particles form flocks, accelerate the sedimentation rate, and improve the efficiency of the concentrate

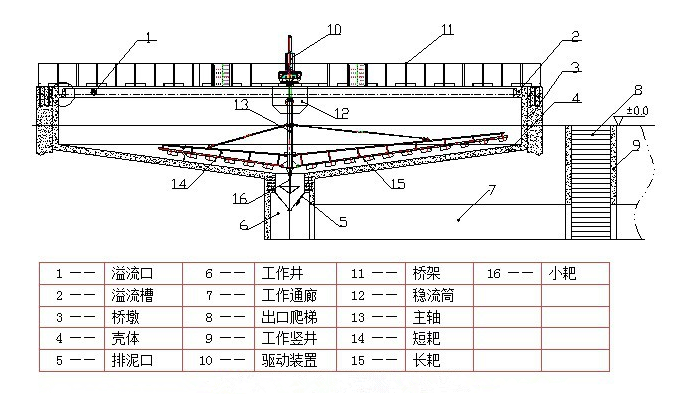

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.
Efficient thickener is widely applied in metallurgy, mines, coal, chemical industry, building materials, environmental protection and other departments, which has significance for improvement of water returning utilization rate and underflow conveying concentration.
|
Model |
Inner Diameter of Tank (mm) |
Tank |
Subsidence Area (m2) |
Rabble |
Lifting Height of the Rabble (mm) |
Driving |
Driving |
Lifting |
Lifting |
Steel Tank Weight (kg) |
Weight |
|
GX-3.6 |
3600 |
1700 |
10.2 |
1.1 |
200 |
Y100L-6 |
1.5 |
Y100L-6 |
1.5 |
2829 |
6650 |
|
GX-5.18 |
5182 |
2134 |
21 |
0.4 |
300 |
Y132S-6 |
3 |
PZ0.8AB |
0.8 |
5342 |
10460 |
|
GX-6 |
6000 |
2500 |
28.3 |
0.8 |
300 |
Y132M1-6 |
4 |
Y132S-8 |
2.2 |
6506 |
10573 |
|
GX-7.5 |
7500 |
2800 |
44.1 |
0.427 |
300 |
Y132M2-6 |
5.5 |
Y132S-8 |
2.2 |
10258 |
17320 |
|
GX-9 |
9000 |
2800 |
63.6 |
0.427 |
300 |
Y132M2-6 |
5.5 |
Y132S-8 |
2.2 |
15980 |
23680 |
|
GX-12 |
12000 |
3600 |
110 |
0.35 |
300 |
Y132M-4 |
7.5 |
Y100L1-4 |
2.2 |
25589 |
42756 |
|
GX-15 |
15000 |
4000 |
177 |
0.15 |
300 |
YCT200-4B |
7.5 |
Y112M-6 |
2.2 |
36050 |
59000 |
|
GX-18 |
18000 |
4400 |
254 |
0.13 |
400 |
YCT200-4B |
7.5 |
YTC752A-44 |
5.5 |
52485 |
73296 |
|
GX-20 |
20000 |
4400 |
314 |
0.13 |
400 |
YCT200-4B |
7.5 |
YTC752A-44 |
5.5 |
59365 |
76020 |
